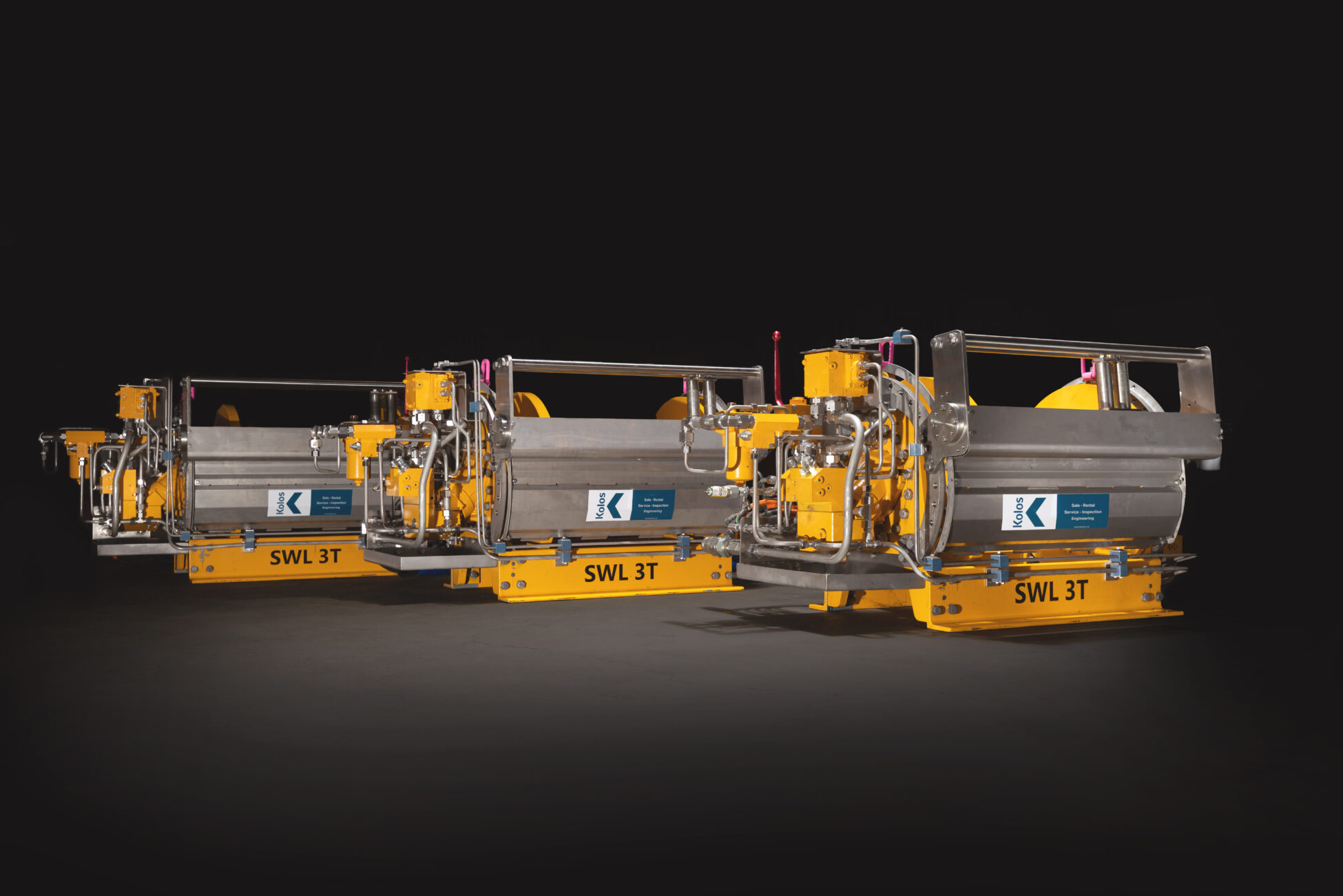

For sale and ready for delivery we have a robust 3mt Kolos winch. In demanding offshore environments, reliability and performance are non-negotiable. Kolos has developed the HV3 series of hydraulic winches, engineered specifically for the oil and gas industry. These winches are designed to handle heavy-duty operations in harsh marine conditions, offering robust construction, precise control, and long-term durability.

The HV3 series combines high torque output with compact design, making it ideal for integration on offshore platforms, vessels, and subsea installations. Each unit is built with corrosion-resistant materials and optimized for minimal maintenance, ensuring consistent performance even under extreme pressure and exposure.

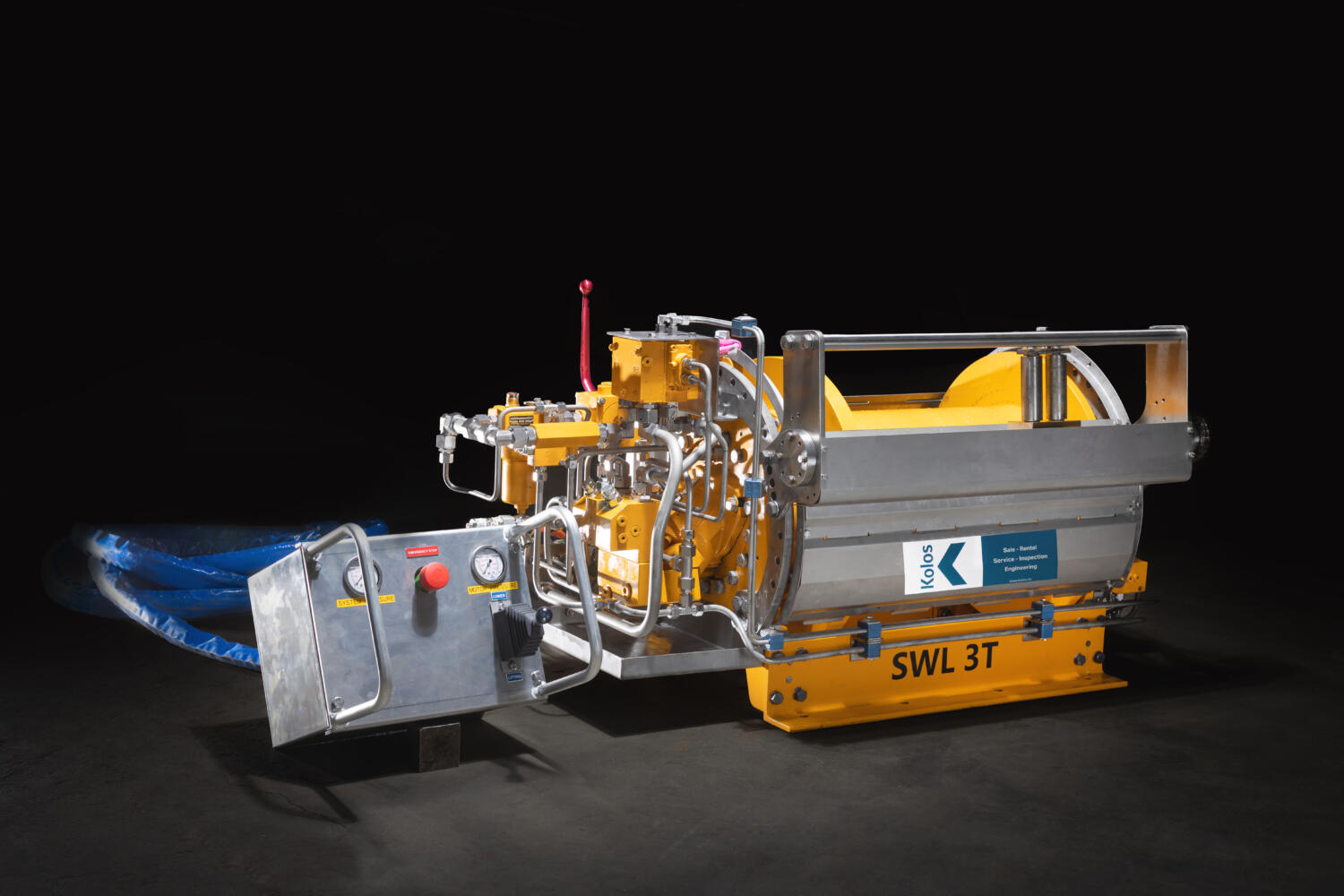

Hydraulic Winch – 3 Ton (Zone 1)
Compact hydraulic winch designed for hazardous area ATEX Zone 1 applications.

• WLL (Working Load Limit): 3T top layer
• Approvals: Machinery Directive 2006/42/EC, Machinery Regulation 2023/1230, EN 14492-1, ISO 4413, Atex Directive and Norsok R-002
• Performance: Flow up to 82 l/min, max pressure 160 bar, lifting speed up to 25m/min on the 5th layer.
• Features: Available as standard, constant tension (CT) with spooling device and control panel.
• Option: Emergency lowering system and remote/removable control panel.
• Dimensions: 1300 × 620 × 810 mm | Weight: 1000 kg
  Ideal for offshore and hazardous lifting operations.

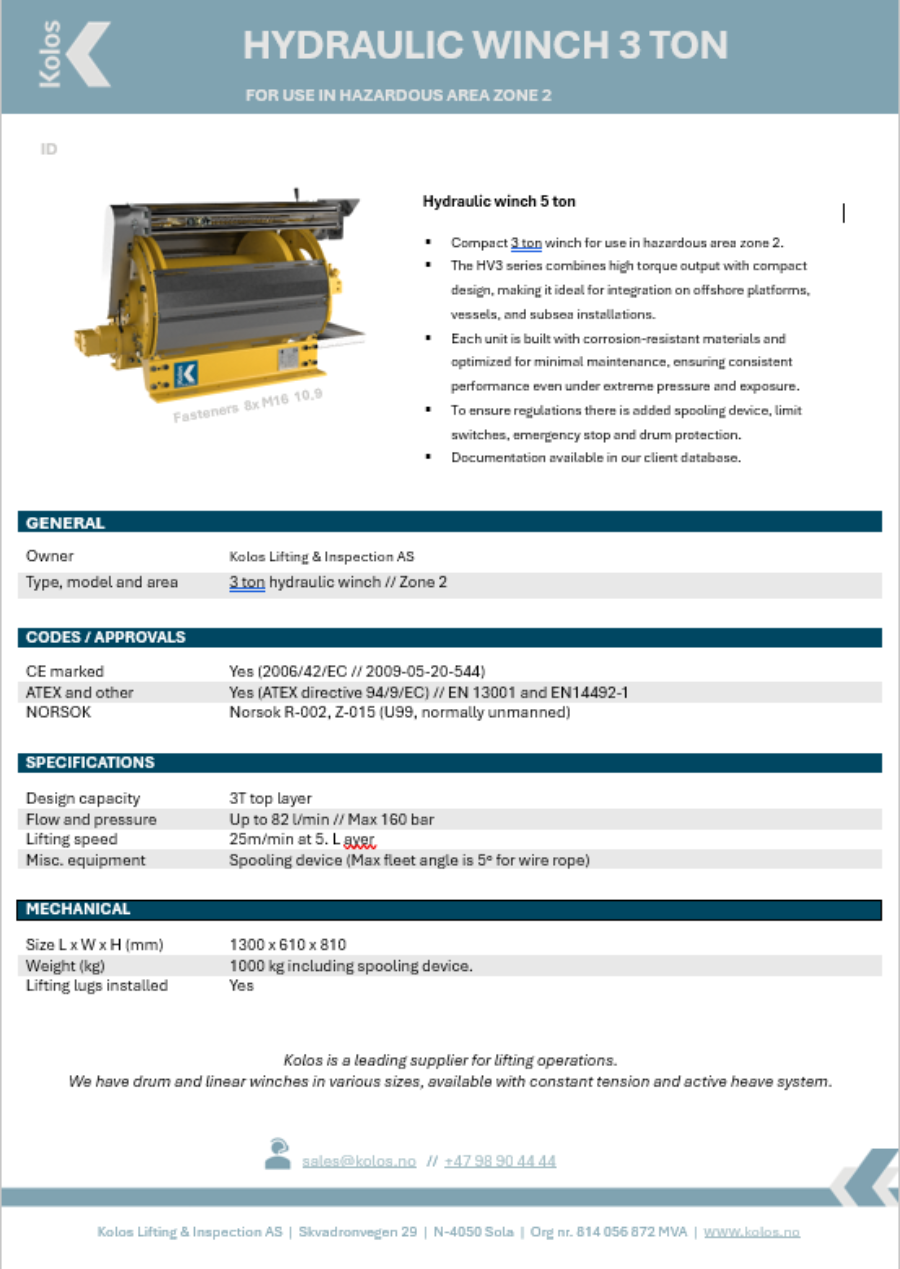

Download MDS below.
